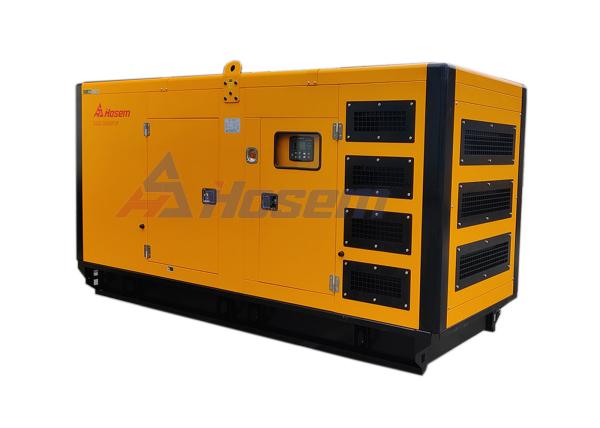

Diesel Generator Set powered by Cummins with Mecc Alte Alternator
Super Silent 300kVA
| Generator Set Specification |
| Model | A-C350 |
| Max. Power | kVA | 350 |
| kW | 280 |
| Rate Power | kVA | 313 |
| kW | 250.4 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 451.8 |
| Fuel Tank Capacity | L | 550 |
| Dimension For Open-type Genset | mm | 3000 X 1115 X 1880 |
| Weight For Open-type Genset | kg | 2240 |
| Dimension For Soundproof Genset | mm | 3900 X 1300 X 1900 |
| Weight For Soundproof Generator | kg | 2950 |
| Noise Level for Soundproof Generator at 7M | dBA | 78 |
| Battery | Two of Free Maintenance Battery |
| Engine Specification |
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Engine Brand | Cummins |
| Engine Model | 6LTAA9.5-G1 |
| No. of Cylinder | 6 Cylinder in line |
| Aspiration | Turbocharged and Air to Air Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 310 |
| Displacement | L | 10.8 |
| Compression Ratio | 16.6 : 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 125 |
| Stroke | mm | 147 |
| Lubrication Oil Capacity | L | 36 |
| Intake Air Flow | M3/Min | 21.9 |
| Fuel Consumption at 100% Load | L/H | 70 |
ΔDiesel generator Specifications
1. We cooperate with famous diesel engines -Powered by Deutz,
Volvo, Doosan, Shangchai, Yarman, Isuzu, Xichai, SDEC, Weichai,
MTU, etc.
2. Equipped with famous Brushless alternator - Optional Stamford,
Leroy Somer, Marathon, Hosem.
3. Full control panel with power indicator light and oil light.
4. Emergency shutdown for low oil pressure and high water
temperature.
5. Equipped with a radiator, enough engine cooling system
guarantees a long time working.
6. Powered by reliable engines
7. Branded alternator
8. Open type, silent type, or super silent type generator
9. ISO9001, CE certified
Δ ENGINE FEATURES
1. Electronic governing
2. Fuel injection pump
3. Low discharge, and low fuel consumption
4. Installed conveniently and maintain easily
| Alternator Specification |
| Alternator Manufacturer | Mecc Alte |
| Alternator Model | ECO38-3L4A |
| Alternator Brand | Mecc Alte |
| Rate Output | kVA | 350 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Phase | 3 Phase |
| Working Temperature without power decrease | ≤40℃ |
| Working Altitude without power decrease | ≤1000m |
| Automatic Voltage Regulation | DSR |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Stamford and Hosem Brushless alternator for
optional |
|
| Control Panel Specification |
| Controller Brand | Deepsea |
| Controller Model | DSE7320 |
| Breaker Brand | Delixi |
| Breaker Capacity (A) | 630 |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| The control panel supply the full protection with alarm and
shutdown of the diesel generator include Start-up fault (generator
set shutdown), High coolant temperature (alarm and generator set
shutdown), Low oil pressure (alarm and generator set shutdown), Low
fuel level (alarm), Low cooling fluid level alarm (as optional),
Overload (alarm and generator set shutdown), Battery voltage high
(alarm). |
|
|
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand
controller. |
|
FAQ
Q1: Can you accept OEM orders?
A5: Yes, we have a professional design team and sincerely welcome
OEM orders.
Q2: Which trade term can you accept?
A6: Available trade terms: FOB, CIF, CFR, EXW, etc.
Q3: What is your MOQ for this item?
A:1 Set
Q4: Is it all right to make the customer's own brand name?
A: We can be your OEM manufacturer with your authorization of the
brand.
