    60Hz 3phase Perkins Silent Diesel Generator 100kVA Diesel Generator

    Ask Lasest Price
    Brand Name : Hosem Power
    Model Number : A-P100H
    Certification : CE/ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500 unit per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    60Hz 3phase Perkins Silent Diesel Generator 100kVA Diesel Generator

    Perkins 60Hz Three-phase 100kVA Diesel Generator Silent Type powered by Perkins engine


    Generator Set Specification
    ModelA-P100H
    Max. PowerkVA100
    kW80
    Rate PowerkVA90
    kW72
    FrequencyHz60
    Rate VoltageV220/127
    Rate CurrentA236.2
    Dimension For Open-type Gensetmm1860 X 750 X 1200
    Weight For Open-type Gensetkg978
    Dimension For Soundproof Gensetmm2500 X 1080 X 1500
    Weight For Soundproof Generatorkg1375

    Product Description

    Δ GENSET FEATURES

    1. Equipped with high-density sound-absorbing material -- sound insulation, fireproofing
    2. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
    3. Generator equipped with 8 hours fuel tank with fuel indicator, long time for working.
    4. High protect class control box and power output box. IP55, Waterproof, Electric leakage protection, Breaker
    5. New generation diesel engine with reinforced parts, more reliable, more efficiently, more easily, more fuel saving, longer lifetime.
    6. Stronger base steel frame with big volume fuel tank & high-efficiency damper.
    7. Standard spare parts: free-maintenance battery (cables & switch), tool case, free parts, etc.
    8. Emergency shutdown for low oil pressure and high water temperature.
    9. Large fuel tanks ensure continuous running.

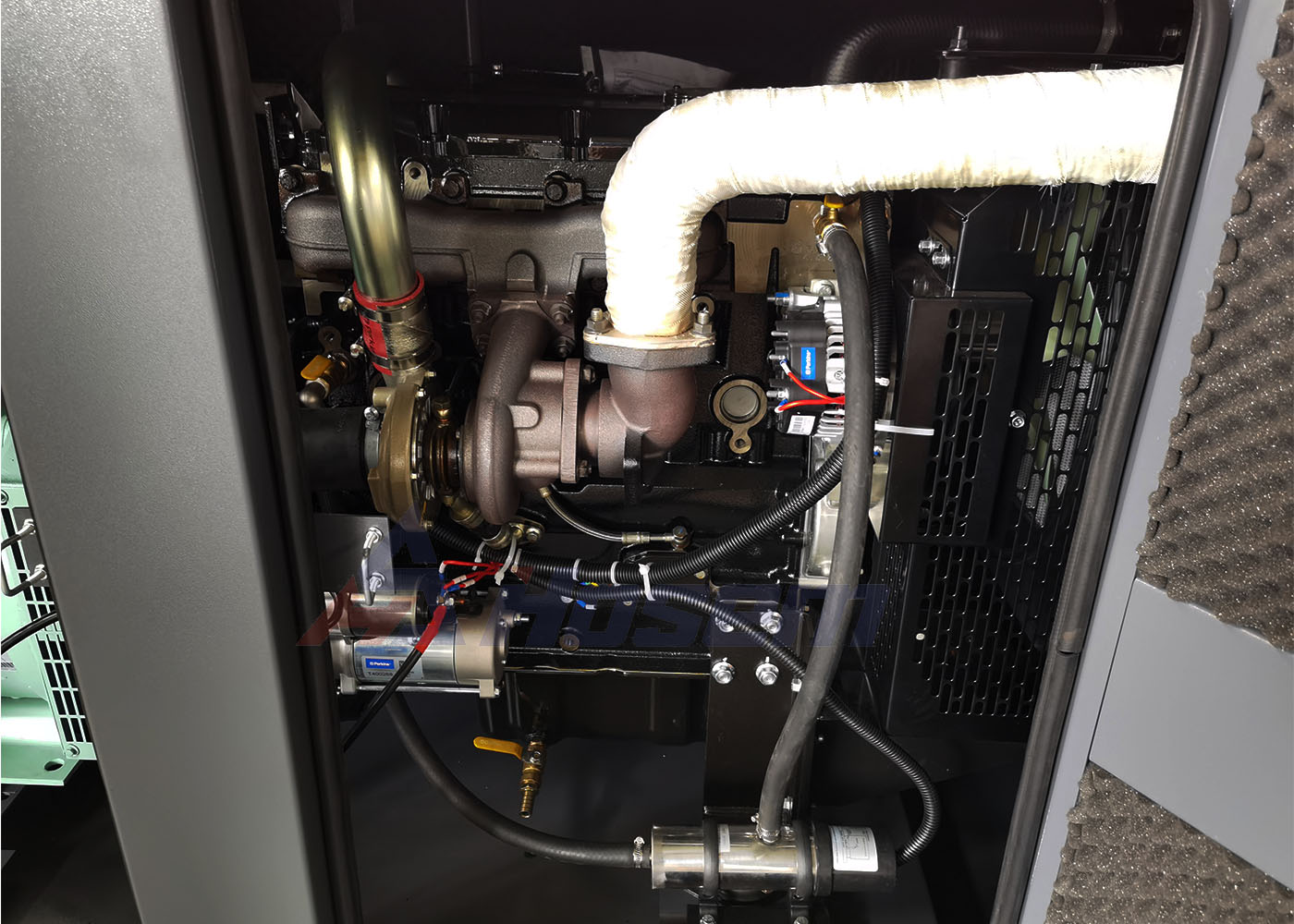

    Engine Specification
    Engine ManufacturerPerkins Engines Company Limited
    Engine BrandPerkins
    Engine Model1104A-44TG2
    No. of Cylinder4 Cylinder in line
    AspirationTurbocharged
    GovernorMechanical
    Engine Max. Output PowerkW90.2
    DisplacementL4.4
    Starting VoltageV12
    Boremm105
    Strokemm127
    Lubrication Oil CapacityL7

    Alternator Specification
    Alternator ManufacturerCummins Generator Technologies
    Alternator ModelUCI 224 G
    Alternator BrandStamford
    Rate OutputkVA97
    FrequencyHz60Hz
    AltitudeM≤1000
    InsulationClass H
    Voltage RegulationAVR Model SX460
    Protection GradeIP23
    Alternator for optionalLeroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

    Control Panel Specification
    Controller BrandDeepsea
    Controller ModelDSE7320
    Breaker BrandDelixi
    Breaker Capacity80A
    Battery ChargerSupply
    Emergency Stop ButtonSupply
    Automatic Mains Fail (AMF)Supply
    The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc.
    Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

    Δ FAQ

    Q1: Are you a factory or trade company?

    A1: Factory. And we have our own trading company.


    Q2: What is the exact address of your factory?

    A2: Our company is located in C2 Building, Cangshan Wanda Plaza,

    No. 216 Pushang Road, Fuzhou City, Fujian, China.


    Q3: What is your MOQ for this item?

    A:1 Set


    Q4: Is it all right to make the customer's own brand name?

    A: We can be your OEM manufacturer with your authorization of the brand.
