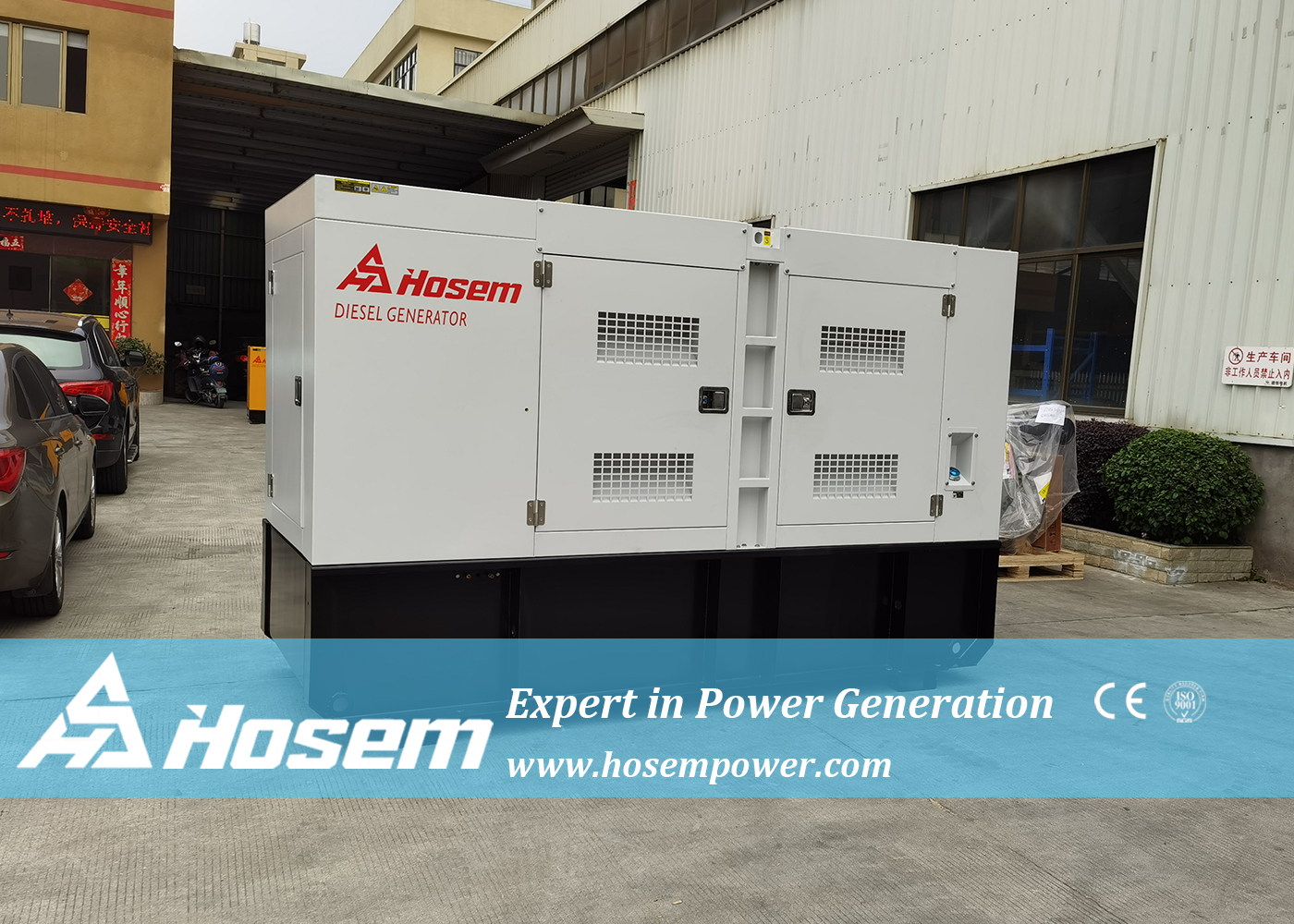

Silent Generator With 304 Stainless Steel Enclosure , Perkins
Engine , Dual Wall Fuel Tank , Australian Standard
Specification:
| Generator Set Specification |
| Model | A-P220 |
| Max. Power | kVA | 220 |
| kW | 176 |
| Rate Power | kVA | 200 |
| kW | 160 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 288.7 |
| Fuel Tank Capacity | L | 320 |
| Dimension For Open-type Genset | mm | 2550 X 800 X 1400 |
| Weight For Open-type Genset | kg | 1630 |
| Dimension For Soundproof Genset | mm | 3200 X 1080 X 1500 |
| Weight For Soundproof Generator | kg | 2090 |
| Noise Level for Soundproof Generator at 7M | dBA | 75 |
| Battery | Two of 80Amps Free Maintenance Battery |
| Engine Specification |
| Engine Manufacturer | Perkins Engines Company Limited |
| Engine Brand | Perkins |
| Engine Model | 1106A-70TAG4 |
| No. of Cylinder | 6 Cylinder in line |
| Aspiration | Turbocharged and Air to Air Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 196.3 |
| Displacement | L | 7.0 |
| Compression Ratio | 16.0 : 1 |
| Starting Voltage | V | 12 |
| Bore | mm | 105 |
| Stroke | mm | 135 |
| Lubrication Oil Capacity | L | 16.5 |
| Intake Air Flow | L/S | N.A. |
| Fuel Consumption at 100% Load | L/H | 45.8 |
Standard configurations
- Perkins diesel engine with professional tool case.
- AC synchronous generator(Stamford / Marathon /ABB / Siemens /China
brand(copper wires, brushless, AVR)).
- 40 ℃ -50 ℃ radiator, belt-driven cooling fan, fan safety shield.
- Steel common base with shock absorber.
- SmartGen 6110 series of modules.
- Dry-type air filter, fuel filter, lubricating oil filter, starter
motor, and self-charging alternator.
- Free maintenance battery, battery floating charger, and connecting
cables.
- Industrial 90dB muffler and standard connecting parts, corrugated
tube.
- Wooden case packing.
Optional configurations
- Silent shell or weather-proof canopy (cabinet).
- Base fuel tank or separate daily fuel tank.
- ATS function (module, switch, cabinet).
- Parallel function(module, switch, cabinet).
- trailer type mobile power station.
- Lub. oil heater, diesel heater, water jacket heater.
- Voltage: 127V/220V; 230V/400V; 6600V ; 10500V.
Hosem Power is always committed to providing you with better power
solutions.
With Hosem Power you can be assured of:
● Value for money, efficient, quality diesel generator sets
● Comprehensive technologies supported by Hosem engineer
● Fastest delivery time, 20-30 days.
● World-class global manufacturing
Multiple Brand for Your
Engine: Cummins, Perkins, Deutz, Volvo Penta, Doosan, Mitsubishi,
Kubota, Yammar, Isuzu, Nissan, Yuchai, SDEC, Ricardo, FAW and so
on.
Alternator: Stamford, Marathon, Leroy Somer, Mecc Alte, and Chinese
Reliable Brands.
Controller: Deepsea, ComAp, Smartgen and so on.
RFQ
1. What is your warranty period?
Our warranty period is 1 year or 1000 running hous, whichever comes
first (Except the damageable spare parts of genset caused by
incorrect man-made operation).
2. What are your payment terms?
T/T 30% advance payment, the balance 70% shall be paid before
shipment.
L/C Irrevocable L/C at sight.
3. What is your delivery time?
As usual, the delivery time is 20 to 30 working days. If you have
special requirements, the delivery will be longer. Kindly contact
us to confirm it.
4. Can the generators be customized?
Yes. Our generators can be customized depending on the customer's
detailed requirements. We can supply generators for rental
business, home use, industrial projects, army projects, power
station, etc. The generators we supply are suitable for indoor and
outdoor use, lower and high-temperature environments.
5. Can you use our logo?
Yes. For mass orders, we can use the customer's logo instead of
ours.
