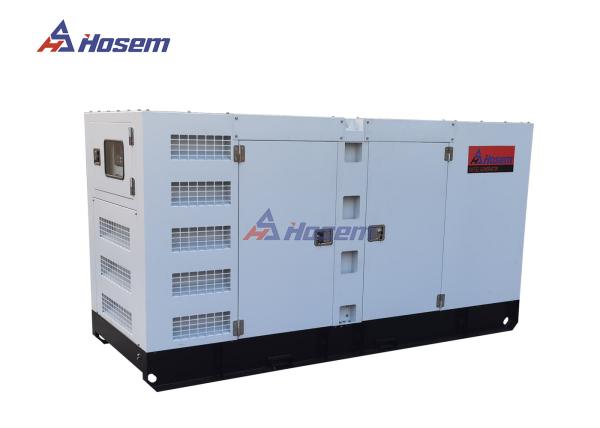

Low Noise Generator , Low Fuel Comsumption , Kofo Engine Generator
, 150kVA
Specification:
| Model | A-KF165 |
| Max. Power | kVA | 165 |
| kW | 132 |
| Rate Power | kVA | 150 |
| kW | 120 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 216.5 |
| Fuel Tank Capacity | L | 250 |
| Dimension For Open-type Genset | mm | 2300 X 820 X 1450 |
| Weight For Open-type Genset | kg | 1400 |
| Dimension For Soundproof Genset | mm | 3200 X 1080 X 1500 |
| Weight For Soundproof Generator | kg | 1920 |
| Noise Level for Soundproof Generator at 7M | dBA | 75 |
| Battery | Two of 100Amps Free Maintenance Battery |
| Engine Specification |
| Engine Manufacturer | Shangdong Kofo Engine Co., Ltd. |
| Engine Brand | Kofo |
| Engine Model | R6105BZLDS |
| No. of Cylinder | 6 Cylinder in line |
| Aspiration | Turbocharged and Air to Air Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 145 |
| Displacement | L | 5.9 |
| Compression Ratio | 17.3 : 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 105 |
| Stroke | mm | 135 |
| Lubrication Oil Capacity | L | 16.4 |
| Intake Air Flow | L/S | 137 |
| Fuel Consumption at 100% Load | L/H | 34 |
Diesel Generator Set / Silent Diesel Generator Set / Soundproof
Diesel Generator Set / Trailer Diesel Generator Set / Container
Diesel Generator Set
1. Our cooperate with famous diesel engine –Powered by UK, US,
Deutz, Isuzu, Doosan, Shangchai, Xichai, SDEC, Weichai, MTU,
Ricardo, Jichai, and others
2. Equipped with famous Brushless alternator – Optional Stamford,
Marathon, Hosem, Mecc alte.
3. Equipped with 50°C radiator with fan, enough engine cooling
system guarantee long time working
4. Equipped with advanced generator set control system, ATS system,
remote control system, parallel operation system, optional control
model, Deep sea, Smartgen , ComAp ,
5. Generator set use High-quality steel are thickness canopy -- 2MM
to 6MM
6. Equipped with high density sound-absorbing material -- sound
insulation, fireproofing
7. Generator equipped with 12V/ 24V DC battery with charger,
battery connects wire.
8. Generator equipped with 10-12 hours fuel tank with fuel
indicator, long time for working.
9. High protect class control box and power output box. IP55,
Waterproof, Electric leakage protect, Breaker
10. New design of turn-back type for air inflow & air outlet which
can reduce the noise and improve engine efficiency.
11. Beautiful & practicably design, Bottom hole for forklift, Water
outlet & oil outlet for easy maintenance
12. Double open door on both sides of the Gensets. Spacious doors
can check for every part of the engine and alternator.
13. All new design for diesel generator set of Silent, Supper
silent, Soundproof, Trailer type, Container type.
14. Our generator set compliance with all main standards, such as :
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard
FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100%
irrevocable L/C at sight.
Q: What is your lead time?
A: About 20-30 days after receiving advance deposit or original
L/C.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificates for
different countries such as SONCAP for Nigeria, COI for Iran, SASO
for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for
the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
