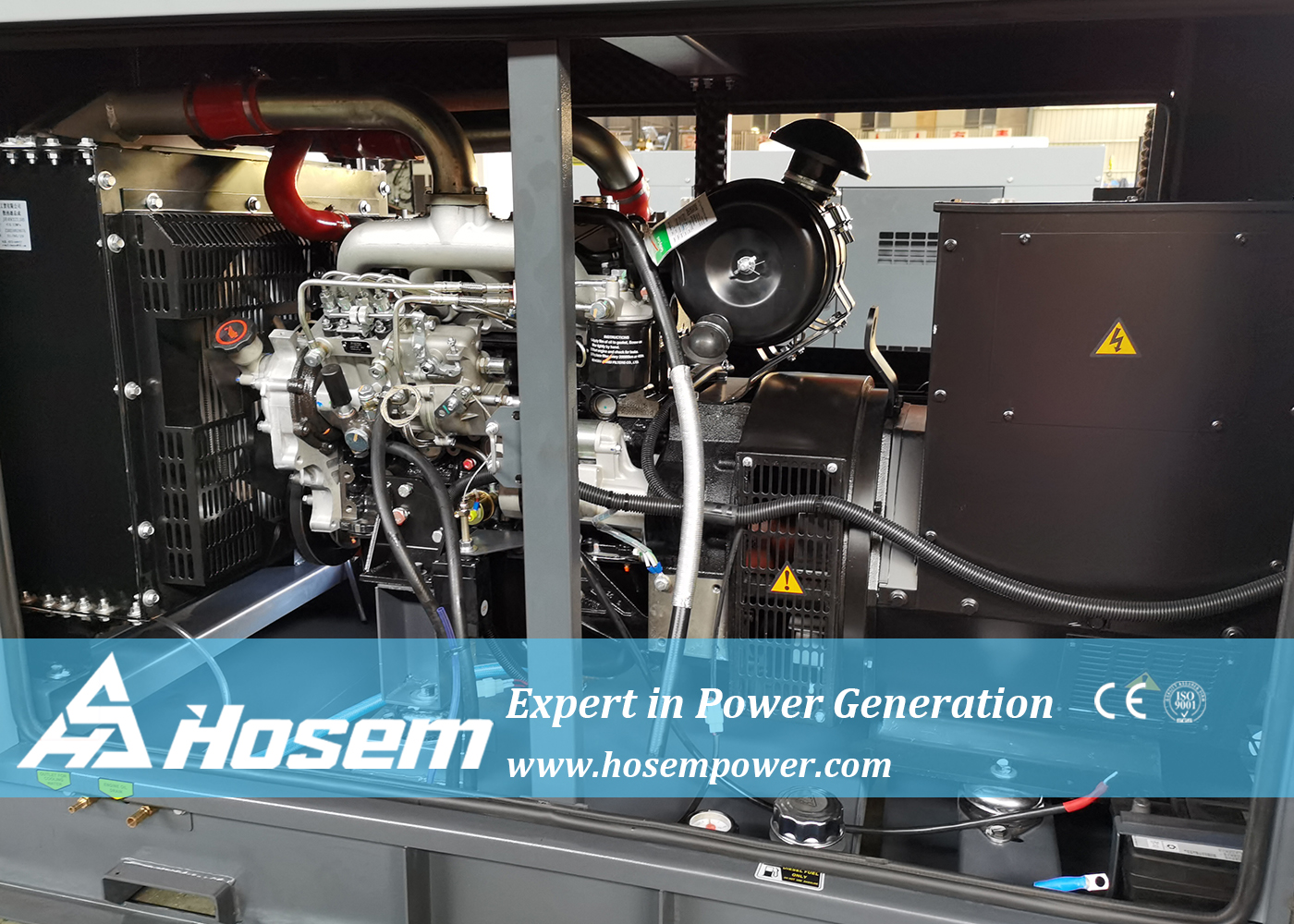

Isuzu Generator Set 60Hz, 50kVA. Hosehold Super Silent Generator
With Isuzu Engine , Low Fuel Consumption ,
| GENSET MODEL | PRIME POWER | PRIME POWER | STANDBY POWER | STANDBY POWER | ENGINE MODEL | ENGINE | OPEN | SOUNDPROOF | TRAILER |
| (KW) | (KVA) | (KW) | (KVA) | RATED POWER (KW) |
| | | |
| | | |
| A-I30H | 19 | 24 | 21 | 26 | JE493DB-03 | 24 | O | O | O |
| A-I33H | 24 | 30 | 26 | 33 | JE493DB-01 | 28 | O | O | O |
| A-I39H | 28 | 35 | 31 | 39 | JE493ZDB-03 | 34 | O | O | O |
| A-I41H | 30 | 38 | 33 | 41 | JE493ZDB-03 | 34 | O | O | O |
| A-I50H | 36 | 45 | 40 | 50 | JE493ZLDB-01 | 46 | O | O | O |
| A-I55H | 40 | 50 | 44 | 55 | JE493ZLDB-01 | 46 | O | O | O |
Diesel generator set Silent / Soundproof type / Trailer type /
container generator
Our generator set compliance with all main standards, such as :
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard
Diesel generator Prime output power: from 2KVA to 2500KVA
Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other
voltage is optional
Generator Phase and connecting: 3 phase, 4wire.
Rated frequency: 50Hz@1500rpm or 60Hz@1800rpm
Alternator excited type: Brushless, self excited or PMG optional
Alternator Insulation: Class H
Alternator Protection: IP21 ~ IP23
Voltage regulation: AVR automatic control 1%
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤ 90%
Controller System
1. DSE6020, HGM6120U, DSE7320 (AMF) model Standard control panel,
including digital LED genset control model: HGM6120U, DSE7320,
DSE6020
2. Automatic transfer switch (ATS) and Automatic parallel operation
system
Accessories
Standard accessories: Standard 50 radiator mounted on skid. Common
steel frame, circuit breaker, damper, exhaust silencer, flexible
pipe, battery and connecting wire, Standard tool kit, operation
manual and Testing document
Manufacturing Standard
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE
0530, NEMA MG1-22,IEC34.
Characteristic:
1. Compact structure, small size, low noise, lightweight, easy to
transport.
2. Strong power, low fuel consumption, small vibration, low
emissions, in line with the national environmental protection
requirements.
3. Excellent durability, long operation life, overhaul cycle more
than 10000 hours.
4. Simple operation, easy access to spare parts, low maintenance
cost.
5. The product has high reliability and the maximum ambient
temperature can reach 60 ℃
6. Using GAC electronic governor, built-in controller and actuator
integration, 1500 rpm and 1800 rpm rated speed adjustable
7. Global service network, convenient service.
FAQ
Q : Do you offer OEM service?
A : Yes
Q : What is the difference between Prime power and Standby power?
A : Prime power is 12hours continous power,one hour 10% over load
in every 12 running hours is allowed .
Standby power is the limit value of maximum output for emergency
use . Overloading is prohibited
Q : What about the warranty
A : Guarantee for one year or 1000 hours (accord to whichever reach
first) from ex-factory date .During the
guarantee period ,our company will provide the free easy damaged
spare part for problems caused by our
quality of production or raw material except the damageable spare
parts of diesel engine caused by
customer's incorrect man made operation . After expiration , our
company provides cost parts maintenance
for gen-set.
