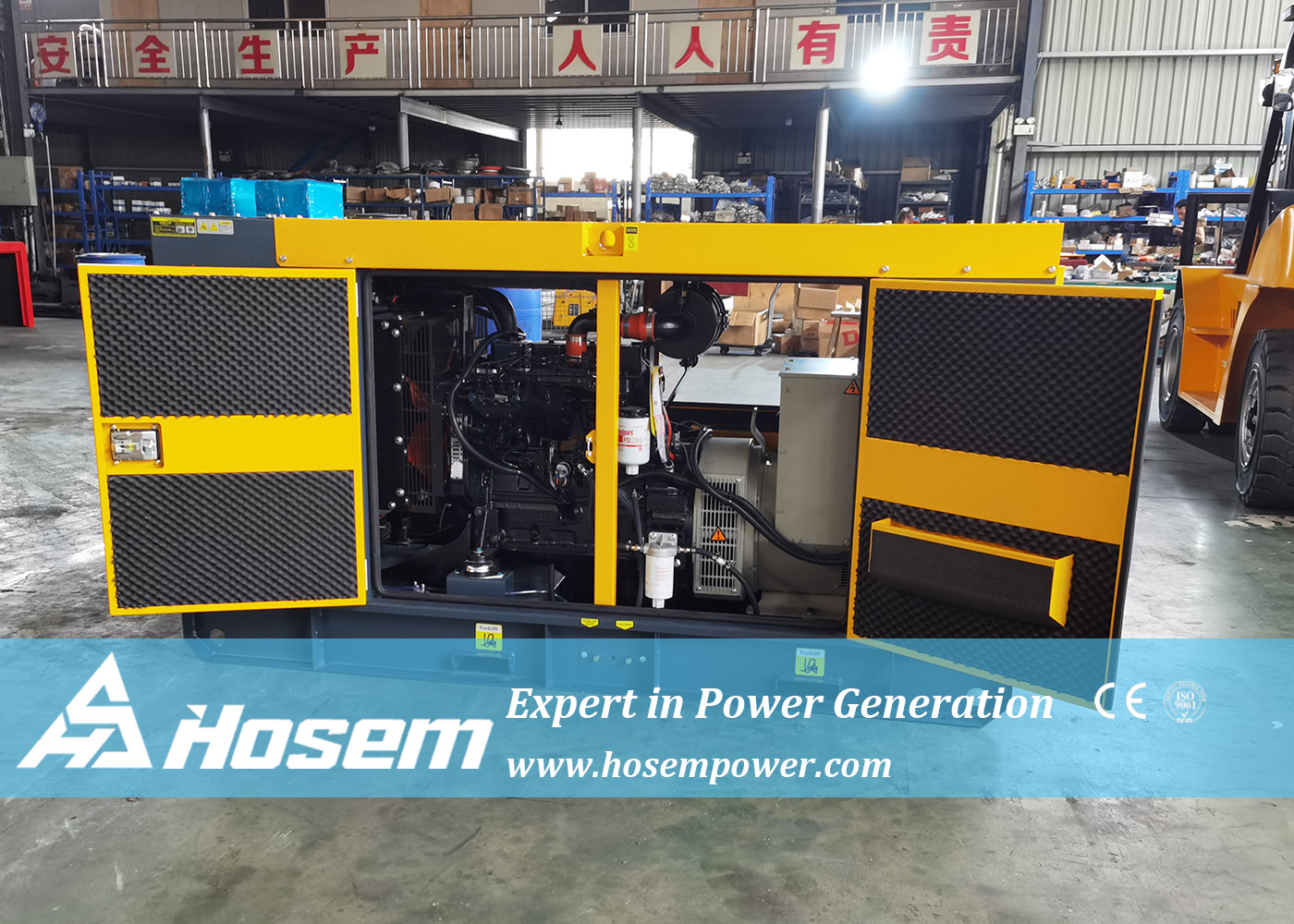

    1500 Rpm 24kw Cummins Generator Set Water Cooling System

    Ask Lasest Price
    Brand Name : Hosem
    Model Number : A-C33
    Certification : CE/ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500 unit per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    1500 Rpm 24kw Cummins Generator Set Water Cooling System

    24kw Generator, cummins 24kw generator, 24kw diesel generator

    Generator Set Specification
    ModelA-C33S
    Max. PowerkVA33
    kW26.4
    Rate PowerkVA30
    kW24
    FrequencyHz50
    Rate VoltageV400/230
    Rate CurrentA43.3
    Fuel Tank CapacityL80
    Dimension For Open-type Gensetmm1770 X 830 X 1350
    Weight For Open-type Gensetkg880
    Dimension For Soundproof Gensetmm2300 X 900 X 1250
    Weight For Soundproof Generatorkg1200
    Noise Level for Soundproof Generator at 7MdBA72
    BatteryTwo of Free Maintenance Battery

    Engine Specification
    Engine ManufacturerDongfeng Cummins Engine Co., Ltd.
    Engine BrandCummins
    Engine Model4BT3.9-G1
    No. of Cylinder4 Cylinder in line
    AspirationTurbocharged
    GovernorMechanical
    Engine Max. Output PowerkW39.6
    DisplacementL3.9
    Compression Ratio17.3 : 1
    Starting VoltageV24
    Boremm102
    Strokemm120
    Lubrication Oil CapacityL11
    Intake Air FlowM3/Min4.13
    Fuel Consumption at 100% LoadL/H9.3

    Alternator Specification
    Alternator ManufacturerCummins Generator Technologies
    Alternator ModelPI 144 G
    Alternator BrandStamford
    Rate OutputkVA30
    FrequencyHz50Hz
    AltitudeM≤1000
    InsulationClass H
    Phase3 Phase
    Working Temperature without power decrease≤40℃
    Working Altitude without power decrease≤1000m
    Automatic Voltage RegulationSX440
    Protection GradeIP23
    Alternator for optionalLeroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

    cummins generator


    FQA


    What is an Automatic Transfer Switch (ATS)?
    An ATS is a device that monitors the power supply from the grid and switches to the generator automatically when it detects a power outage. It ensures a seamless transition between grid power and generator power.


    Can I Install a Generator Set Myself?
    While some portable generators can be set up by homeowners, it's recommended to have a professional electrician or technician install stationary generator sets. Improper installation can be dangerous and affect the generator's performance.


    What Safety Precautions Should I Follow When Using a Generator Set?
    Always follow the manufacturer's instructions and safety guidelines. Place the generator outdoors in a well-ventilated area, away from windows and vents. Use proper grounding and never connect the generator to the main electrical panel without an ATS.


    What are Emissions Regulations for Generator Sets?
    Generator sets, especially diesel engines, may be subject to emissions regulations depending on your location. Make sure to check local emissions standards and regulations before purchasing a generator.
