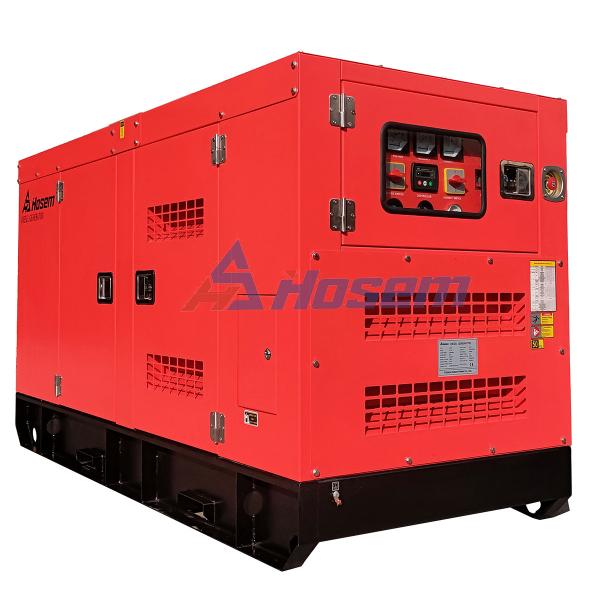

69kva Isuzu Genset Soundproof 3 Phase By Hosem Alternator

Ask Lasest Price
Brand Name :	Hosem
Model Number :	A-I69
Certification :	ISO9001,CE, SASO, SONCAP
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	500 Units Per Month
Delivery Time :	30-35days

Add to Cart

Product Details
Company Profile

69kva Isuzu Genset Soundproof 3 Phase By Hosem Alternator

69kVA Soundproof Isuzu Diesel Power Generator 3Phase By Hosem Alternator

Generator Set Specification
Model		A-I69
Max. Power	kVA	69
Max. Power	kW	55
Rate Power	kVA	63
Rate Power	kW	50
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	90.2
Fuel Tank Capacity	L	120
Dimension For Open-type Genset	mm	1780 X 750 X 1380
Weight For Open-type Genset	kg	960
Dimension For Soundproof Genset	mm	2250 X 1000 X 1282
Weight For Soundproof Generator	kg	1050
Noise Level for Soundproof Generator at 7M	dBA	72
Battery		One of Free Maintenance Battery

Technical data--Engine

Engine Specification
Engine Manufacturer		Deutz (Dalian) Engine Co., Ltd.
Engine Brand		Deutz
Engine Model		4BG1-Z
No. of Cylinder		4 Cylinder in line
Aspiration		Turbocharged
Governor		Electric
Engine Max. Output Power	kW	65
Displacement	L	4.3
Compression Ratio		17.5 : 1
Starting Voltage	V	12
Bore	mm	105
Stroke	mm	125
Lubrication Oil Capacity	L	N.A.
Intake Air Flow	M3/Min	N.A.
Fuel Consumption at 100% Load	L/H	14.92771084

Technical data--Alternator

Alternator Specification
Alternator Manufacturer		Fuzhou Hosem Power Co., Ltd.
Alternator Model		ASF224E
Alternator Brand		Hosem
Rate Output	kVA	62
Frequency	Hz	50Hz
Altitude	M	≤1000
Insulation		Class H
Phase		3 Phase
Working Temperature without power decrease		≤40℃
Working Altitude without power decrease		≤1000m
Automatic Voltage Regulation		SX460
Protection Grade		IP23
Alternator for optional	Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Technical data--Controller

Control Panel Specification
Controller Brand	Smartgen
Controller Model	HGM6120N
Breaker Brand	Delixi
Breaker Capacity (A)	125
Battery Charger	Smartgen Model BAC06A
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
Fuel Level	Supply
Automatic Transfer Switch	ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).


Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Description

1.The 50Hz Isuzu Energy diesel generator with a standby power rating of 69kVA is a versatile and efficient power generation solution.

2.The generator offers a standby power output of 69kVA, making it suitable for a variety of applications that require moderate power demands, such as small to medium-sized commercial buildings, telecom facilities, and critical equipment.

3.The generator is equipped with a high-quality Isuzu diesel engine, known for its robust performance, durability, and fuel efficiency. Isuzu engines are trusted for their reliability and are a popular choice for power generation equipment.

4.The quiet generator is housed in a sound-attenuating enclosure designed to reduce operating noise, making it suitable for noise-sensitive environments while maintaining efficient ventilation of the engine.

5.The generator's compact design and footprint allow for easier installation in various locations, optimizing space utilization.

6. Its efficient engine, advanced control features, safety mechanisms, and compatibility with accessories make it a reliable choice for businesses and organizations seeking a steady source of backup power.

7.This generator combines innovative technology, robust engineering.

8.This capacity allows it to power essential equipment, systems, and facilities during unforeseen disruptions in the primary power source.

Isuzu diesel generator

FAQ:

Q1: What is the brand name of the Isuzu Generator Set?

A1: The brand name of the Isuzu Generator Set is Hosem.

Q2: What is the model number of the Isuzu Generator Set?

A2: The model number of the Isuzu Generator Set is A-I69.

Q3: Where is the Isuzu Generator Set from?

A3: The Isuzu Generator Set is from China.

Q4: What is the power output of the Isuzu Generator Set?

A4: The power output of the Isuzu Generator Set depends on the specific model.

Q5: Can we customize the product?

A: We have a very experienced technical team, we can customize any product according to your requirements, such as synchronization system, wet exhaust system, ultra-silent system.
