138kva 6BTA5.9G2 Cumins Dg Set Open Type Low Noise

Ask Lasest Price
Brand Name :	Hosem
Model Number :	A-C138
Certification :	ISO9001,CE, SASO, SONCAP
Price :	USD8800-USD9800
Payment Terms :	L/C, T/T
Supply Ability :	500 Units Per Month
Delivery Time :	30-35days

Add to Cart

Product Details
Company Profile

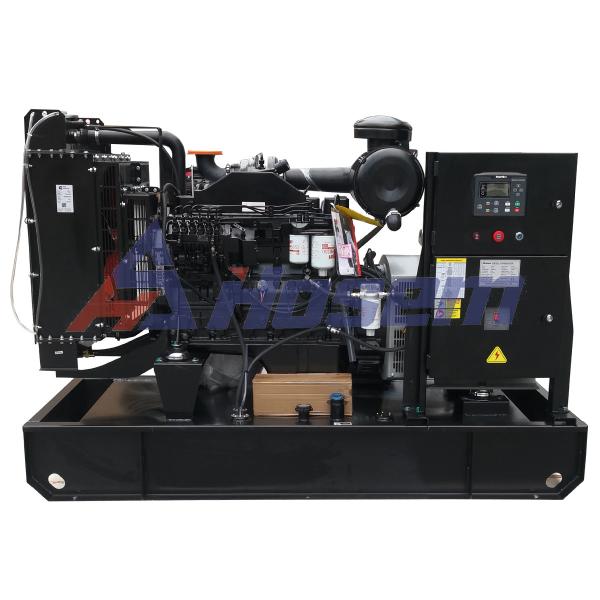

138kva 6BTA5.9G2 Cumins Dg Set Open Type Low Noise

138kVA Open-Type Cummins Diesel Generator Best Standby Engine For Sale

Generator Set Specification
Model		A-C138
Max. Power	kVA	138
Max. Power	kW	110
Rate Power	kVA	125
Rate Power	kW	100
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	180.4
Fuel Tank Capacity	L	280
Dimension For Open-type Genset	mm	2200 X 900 X 1380
Weight For Open-type Genset	kg	1250
Dimension For Soundproof Genset	mm	2900 X 1080 X 1500
Weight For Soundproof Generator	kg	1750
Noise Level for Soundproof Generator at 7M	dBA	75
Battery		Two of Free Maintenance Battery

Technical data--Engine

Engine Specification
Engine Manufacturer		Dongfeng Cummins Engine Co., Ltd.
Engine Brand		Cummins
Engine Model		6BTA5.9G2
No. of Cylinder		6 Cylinder in line
Aspiration		Turbocharged & Aftercooled
Governor		Electric
Engine Max. Output Power	kW	116.6
Displacement	L	5.9
Compression Ratio		17.3 : 1
Starting Voltage	V	24
Bore	mm	102
Stroke	mm	120
Lubrication Oil Capacity	L	16.4
Intake Air Flow	M3/Min	7.6
Fuel Consumption at 100% Load	L/H	27

Technical data--Alternator

Alternator Specification
Alternator Manufacturer		Fuzhou Hosem Power Co., Ltd.
Alternator Model		ASF274D
Alternator Brand		Hosem
Rate Output	kVA	130
Frequency	Hz	50Hz
Altitude	M	≤1000
Insulation		Class H
Phase		3 Phase
Working Temperature without power decrease		≤40℃
Working Altitude without power decrease		≤1000m
Automatic Voltage Regulation		SX460
Protection Grade		IP23
Alternator for optional	Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Technical data--Controller

Control Panel Specification
Controller Brand	Smartgen
Controller Model	HGM6120N
Breaker Brand	Delixi
Breaker Capacity (A)	250
Battery Charger	Smartgen Model BAC06A
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
Fuel Level	Supply
Automatic Transfer Switch	ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).


Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Description

1.With a robust 138kVA power output, this diesel generator is designed to meet the energy needs of a variety of applications, from industrial setups to commercial establishments and critical facilities. It's not just about quantity, but about delivering consistent and stable power that keeps your operations running smoothly.

2.Diesel engines are renowned for their reliability and fuel efficiency. The standby engine in this generator is no exception. It is built to perform consistently over extended periods, making it an ideal choice for backup power applications where reliability is paramount.

3.Whether it's a sudden power outage or a planned maintenance outage, this generator ensures that your business can continue uninterrupted.

4.Beyond mere quantity, it thrives on delivering unwavering and consistent power, ensuring your operations glide seamlessly.

5.Every component is intricately crafted to harmonize for optimal performance, establishing it as a beacon of robustness.

6.From prime power to standby applications, the 138kVA Cummins Diesel Generator shines.

7.Silent and open type for option.

8.For those seeking a power source that embodies unwavering performance, efficiency, and steadfastness, the 138kVA Cummins Diesel Generator stands ready to transform your power needs into a reality.

cummins diesel generator

FAQ:

Q1: What is the brand name of the Cummins Generator Set?

A1: The brand name of the Cummins Generator Set is Hosem.

Q2: What is the model number of the Cummins Generator Set?

A2: The model number of the Cummins Generator Set is A-C138.

Q3: Where is the Cummins Generator Set from?

A3: The Cummins Generator Set is from China.

Q4: What is the power output of the Cummins Generator Set?

A4: The power output of the Cummins Generator Set depends on the specific model.

Q5: Can we customize the product?

A: We have a very experienced technical team, we can customize any product according to your requirements, such as synchronization system, wet exhaust system, ultra-silent system.
