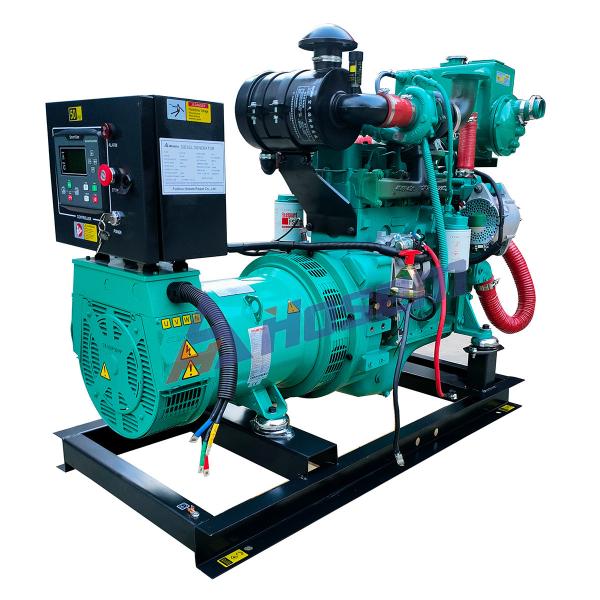

Open Type 41kVA Standby Power Cummins Engine Diesel Genentaor 50Hz
With ASF184H Alternator
Famous Generator brands---Cummins Diesel Generator
| Generator Set Specification |
| Model | A-C41M |
| Max. Power | kVA | 41 |
| kW | 33 |
| Rate Power | kVA | 38 |
| kW | 30 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 54.1 |
| Fuel Tank Capacity | L | 80 |
| Dimension For Open-type Genset | mm | 1780 X 750 X 1350 |
| Weight For Open-type Genset | kg | 880 |
| Dimension For Soundproof Genset | mm | 2300 X 900 X 1250 |
| Weight For Soundproof Generator | kg | 1200 |
| Noise Level for Soundproof Generator at 7M | dBA | 72 |
| Battery | Two of Free Maintenance Battery |
Excellent engine---Dongfeng Cummins 4BT3.9-G1
| Engine Specification |
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Engine Brand | Cummins |
| Engine Model | 4BT3.9-G1 |
| No. of Cylinder | 4 Cylinder in line |
| Aspiration | Turbocharged |
| Governor | Mechanical |
| Engine Max. Output Power | kW | 39.6 |
| Displacement | L | 3.9 |
| Compression Ratio | 17.3 : 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 102 |
| Stroke | mm | 120 |
| Lubrication Oil Capacity | L | 11 |
| Intake Air Flow | M3/Min | 4.13 |
| Fuel Consumption at 100% Load | L/H | 9.3 |
Reliable alternator model-- ASF184H
| Alternator Specification |
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. |
| Alternator Model | ASF184H |
| Alternator Brand | Hosem |
| Rate Output | kVA | 42 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Phase | 3 Phase |
| Working Temperature without power decrease | ≤40℃ |
| Working Altitude without power decrease | ≤1000m |
| Automatic Voltage Regulation | SX460 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
Safe controller--Deepsea DSE7320
| Control Panel Specification |
| Controller Brand | Deepsea |
| Controller Model | DSE7320 |
| Breaker Brand | Delixi |
| Breaker Capacity (A) | 63 |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| The control panel supply the full protection with alarm and
shutdown of the diesel generator include Start-up fault (generator
set shutdown), High coolant temperature (alarm and generator set
shutdown), Low oil pressure (alarm and generator set shutdown), Low
fuel level (alarm), Low cooling fluid level alarm (as optional),
Overload (alarm and generator set shutdown), Battery voltage high
(alarm). |
|
|
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand
controller. |
Description
1.Diesel generators are strong-built, ideal for emergency
back-up,job sites and industrial appplications.
2.Powered by reliable air/water cooled diesel generators sets,
industrial grade, great fuel efficiency, less maintenance, long
operating life.
3.Strong technology and high-quality personnel, continuous
innovation and perfect management.
4.Each generator will be packed in both strong and economic way
tomake sure goods perfectly on delivery.
5.Manufacured strictly according to ISO9001 internatioal quality
management system.
6.Set mounted automatic control panel, with Smartgen or Deepsea
controller brand for automatic start & stop.
7.Big enough free maintenance battery, world famous brand.
8.Diesel generator parts are international renowned brands, top
quality, easy maintaining and replace.
9.The diesel generator has the function of generating electricity
and can be used as a backup power supply for various places.
10.Standard control panel is the basic configure for normally
operation and usage.
FQA:
Q1: How to choose the right model ?
It depends on continuous output power, Voltage, Frequency and fuel
type.
Q2.Do you have single phase or three phase diesel generators?
Answer: Yes,we have single phase and three phase diesel generators.
Q3: What the MOQ?
A: 1 Set.
Q4: How many kinds of the diesel generator you have for optional?
A: We have open-type, soundproof type, waterproof type and trailer
type diesel generator for optional.
Q5: Which seaport you can ship the diesel generator to oversea
country?
A: We can ship the diesel generator from Fuzhou Port, China. And
Fuzhou port is a international seaport in China.
