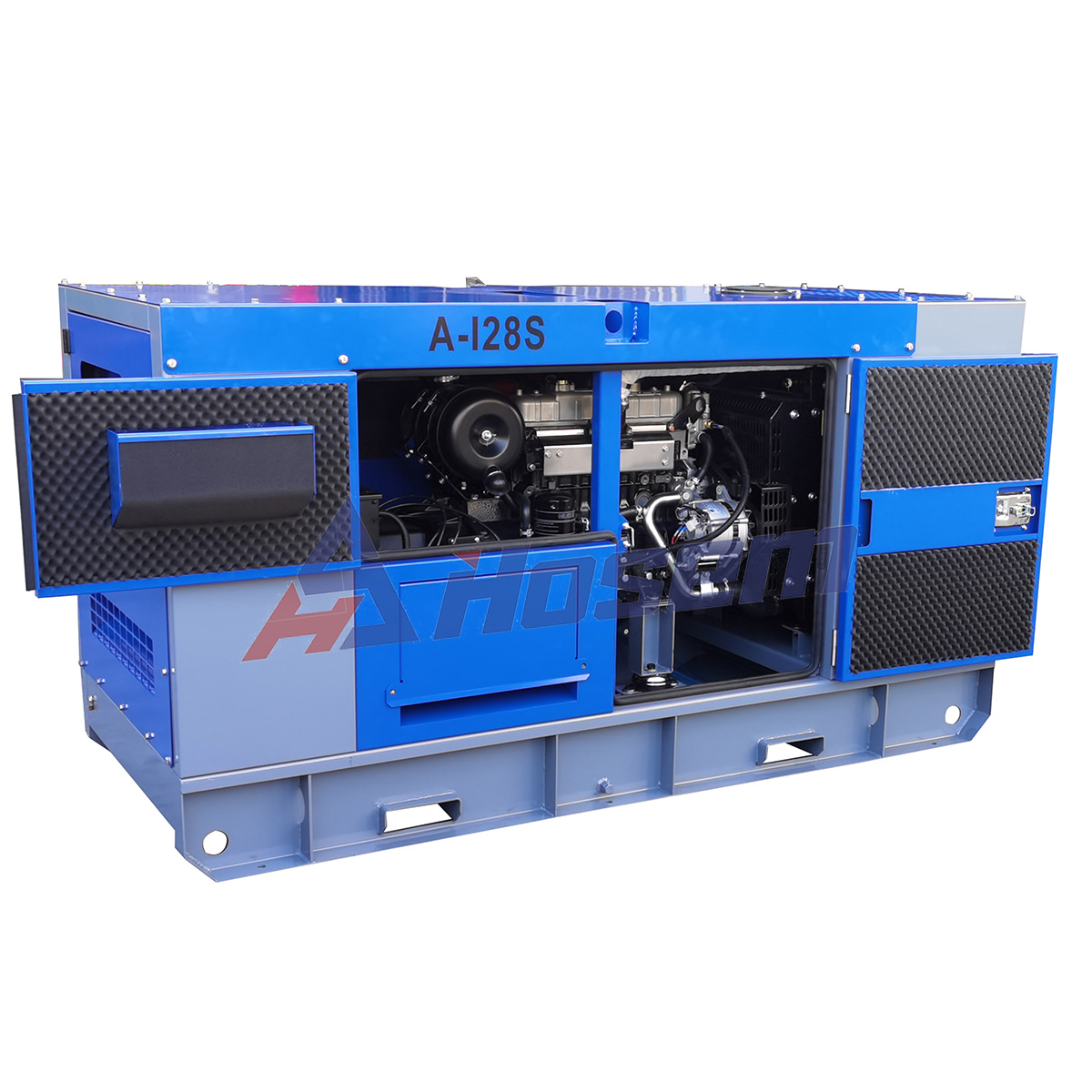

50Hz Isuzu Diesel Generator With Smartgen Controller ASF184FS
Alternator By JE493DB-04 Engine
| Generator Set Specification |
| Model | A-I28S |
| Max. Power | kVA | 28 |
| kW | 22.4 |
| Rate Power | kVA | 25 |
| kW | 20 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 36.1 |
| Fuel Tank Capacity | L | 60 |
| Dimension For Open-type Genset | mm | 1370 X 680 X 1350 |
| Weight For Open-type Genset | kg | 570 |
| Dimension For Soundproof Genset | mm | 2050 X 860 X 1100 |
| Weight For Soundproof Generator | kg | 920 |
| Noise Level for Soundproof Generator at 7M | dBA | 70 |
| Battery | One of Free Maintenance Battery |
| Engine Specification |
| Engine Manufacturer | Deutz (Dalian) Engine Co., Ltd. |
| Engine Brand | Deutz |
| Engine Model | JE493DB-04 |
| No. of Cylinder | 4 Cylinder in line |
| Aspiration | Naturally Aspirated |
| Governor | Mechanical |
| Engine Max. Output Power | kW | 27 |
| Displacement | L | 2.8 |
| Compression Ratio | 18.2 : 1 |
| Starting Voltage | V | 12 |
| Bore | mm | 93 |
| Stroke | mm | 102 |
| Lubrication Oil Capacity | L | 5.6 |
| Intake Air Flow | M3/Min | 18.2 |
| Fuel Consumption at 100% Load | L/H | 7.189156627 |
| Alternator Specification |
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. |
| Alternator Model | ASF184FS |
| Alternator Brand | Hosem |
| Rate Output | kVA | 25 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Phase | 3 Phase |
| Working Temperature without power decrease | ≤40℃ |
| Working Altitude without power decrease | ≤1000m |
| Automatic Voltage Regulation | SX460 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
| Control Panel Specification |
| Controller Brand | Smartgen |
| Controller Model | HGM6120N |
| Breaker Brand | Delixi |
| Breaker Capacity (A) | 63 |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| The control panel supply the full protection with alarm and
shutdown of the diesel generator include Start-up fault (generator
set shutdown), High coolant temperature (alarm and generator set
shutdown), Low oil pressure (alarm and generator set shutdown), Low
fuel level (alarm), Low cooling fluid level alarm (as optional),
Overload (alarm and generator set shutdown), Battery voltage high
(alarm). |
|
|
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand
controller. |
|
Product Description
1.For open type, the genset will be much easier to maintain and
repair with more durable performance and longer service life, so
the cost performance is higher.
2.Silent type generator is becoming more popular in the industry as
it's easier to install, transport and can be operated outside
directly.
3.Improved advanced air flow and ambient temperature design which
assures the generator can perform its utmost capability both at
100% prime and 110% emergency standby use.
4.Diesel generators are strong-built, ideal for emergency
back-up,job sites and industrial appplications.
5.Powered by reliable air/water cooled diesel generators sets,
industrial grade, great fuel efficiency, less maintenance, long
operating life.
6.The generator is available with single or three-phase output, we
also offer a digital control panel and ATS as optional accessories.
7.By using the world's leading power engines, efficient generators
and controller systems with different designs, it make diesel
generator sets running in the best state with enough power and
stable performance.
8.Using the power engine with the world's leading technology, and
being equipped with high performance rubber damper and steel base,
diesel genset is close structural design, small vibration, low
noise and low emission.
9.With standardized design, the diesel genset has general spare
parts, which make the maintenance convenient.
10.Global famous brand power engines, high reliability and long
overhaul period; Advanced combustion system and high efficiency
power engine have the low fuel consumption and reduce the cost.
FQA:
Q1: How to choose the right model ?
It depends on continuous output power, Voltage, Frequency and fuel
type.
Q2.Do you have single phase or three phase diesel generators?
Answer: Yes,we have single phase and three phase diesel generators.
Q3: What the MOQ?
A: 1 Set.
Q4: How many kinds of the diesel generator you have for optional?
A: We have open-type, soundproof type, waterproof type and trailer
type diesel generator for optional.
Q5: Which seaport you can ship the diesel generator to oversea
country?
A: We can ship the diesel generator from Fuzhou Port, China. And
Fuzhou port is a international seaport in China.
