Doosan Engine 500kVA 550kVA Silent Type Electric Diesel Generator Water Cooled

Ask Lasest Price
Brand Name :	Hosem Power
Model Number :	A-D550
Certification :	CE/ISO9001
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	500 unit per month
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

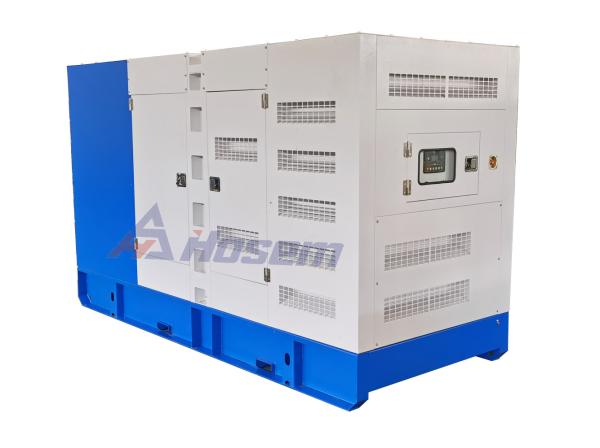

Doosan Engine 500kVA 550kVA Silent Type Electric Diesel Generator Water Cooled

Doosan Engine 500kVA 550kVA Water Cooled Silent Type Electric Diesel Generator

Generator Set Specification
Model		A-D550
Max. Power	kVA	550
Max. Power	kW	440
Rate Power	kVA	500
Rate Power	kW	400
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	721.7
Fuel Tank Capacity	L	700
Dimension For Open-type Genset	mm	3050 X 1400 X 1980
Weight For Open-type Genset	kg	4000
Dimension For Soundproof Genset	mm	3700 X 1650 X 2050
Weight For Soundproof Generator	kg	5100
Noise Level for Soundproof Generator at 7M	dBA	80
Battery		Four of 120Ah Free Maintenance Battery

Engine Specification
Engine Manufacturer		Doosan Infracore
Engine Brand		Doosan
Engine Model		DP158LD
No. of Cylinder		8 Cylinder V Type
Aspiration		Turbocharged & Aftercooled
Governor		Electric
Engine Max. Output Power	kW	510
Displacement	L	14.6
Compression Ratio		15 : 1
Starting Voltage	V	24
Bore	mm	128
Stroke	mm	142
Lubrication Oil Capacity	L	28
Intake Air Flow	M3/Min	25.3
Fuel Consumption at 100% Load	L/H	114.5

Alternator Specification
Alternator Manufacturer		Cummins Generator Technologies
Alternator Model		HCI544D
Alternator Brand		Stamford
Rate Output	kVA	500
Frequency	Hz	50Hz
Altitude	M	≤1000
Insulation		Class H
Phase		3 Phase
Working Temperature without power decrease		≤40℃
Working Altitude without power decrease		≤1000m
Automatic Voltage Regulation		AS440
Protection Grade		IP23
Alternator for optional	Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Control Panel Specification
Controller Brand	Smartgen
Controller Model	HGM6120N
Breaker Brand	Delixi
Breaker Capacity (A)	800
Battery Charger	Smartgen Model BAC06A
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
Fuel Level	Supply
Automatic Transfer Switch	ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).


Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Product Description

Δ Genset Features

1. Power output: The Doosan 500kVA diesel generator is capable of delivering a continuous power output of 500 kilovolt-amperes (kVA), making it suitable for large-scale industrial or commercial applications.

2. Engine: The generator is equipped with a high-performance diesel engine designed for reliability, durability, and fuel efficiency.

3. Advanced technology features: The Doosan 500kVA diesel generator incorporates advanced technology features, such as automatic voltage regulation, remote monitoring and control capabilities, and low-noise operation.

4. Soundproof enclosure: The generator comes with a soundproof enclosure designed to reduce noise levels, making it ideal for use in residential or urban areas.

5. Maintenance features: The Doosan 500kVA diesel generator is designed with features that make maintenance and service easier and more efficient, such as easily accessible service points and diagnostic capabilities.

6. Environmental considerations: The generator is designed with features that reduce emissions and promote environmental sustainability, such as advanced emissions control systems and fuel efficiency technologies.

Δ FAQ

Q1: What is the power range of your diesel generator?
A: We can provide power from 0.7kVA-2000kVA.

Q2: The valid period of the offer?
A: 30 days.

Q3: Are you a factory or trade company?
A: Factory. And we have our own trading company.

Q4: What is the exact address of your factory?
A: Our company is located in C2 Building, Cangshan Wanda Plaza,
No. 216 Pushang Road, Fuzhou City, Fujian, China.
