Cummins 1000kVA Diesel Generator Set For Harbor , With Marine
Standard Alternator And Soundproof Enclosure
| Generator Set Specification |
| Model | A-C1100 |
| Max. Power | kVA | 1100 |
| kW | 880 |
| Rate Power | kVA | 1000 |
| kW | 800 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 1443.4 |
| Fuel Tank Capacity | L | 600 |
| Dimension For Open-type Genset | mm | 4243 X 1820 X 2400 |
| Weight For Open-type Genset | kg | 8120 |
| Dimension For Soundproof Genset | mm | 5500 X 2200 X 2450 |
| Weight For Soundproof Generator | kg | 10270 |
| Noise Level for Soundproof Generator at 7M | dBA | 80 |
| Battery | Two of Free Maintenance Battery |
| Engine Specification |
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Engine Brand | Cummins |
| Engine Model | KTA38-G5 |
| No. of Cylinder | 12 Cylinder V Type |
| Aspiration | Turbocharged & Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 970 |
| Displacement | L | 37.8 |
| Compression Ratio | 13.9 : 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 159 |
| Stroke | mm | 159 |
| Lubrication Oil Capacity | L | 135 |
| Intake Air Flow | M3/Min | 72.8 |
| Fuel Consumption at 100% Load | L/H | 209 |
| Alternator Specification |
| Alternator Manufacturer | Nidec Group |
| Alternator Model | Leroy Somer |
| Alternator Brand | TAL-A-42G |
| Rate Output | kVA | 1100 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Phase | 3 Phase |
| Working Temperature without power decrease | ≤40℃ |
| Working Altitude without power decrease | ≤1000m |
| Automatic Voltage Regulation | R150 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
The 1000kVA generator, specifically designed to meet the unique
power demands of harbor.
At the heart of this generator is the renowned Cummins KTA38 G5
engine, known for its excellent fuel efficiency and robust
performance. This engine delivers 1000kVA of reliable power, making
it ideal for heavy-duty applications such as powering cranes,
refrigeration units, and other equipment at sea harbors.
To ensure maximum efficiency and performance, the generator is
equipped with a Leroy Somer TAL-A-42G alternator. Leroy Somer is a
trusted brand in the power generation industry, known for their
high-quality alternators that offer excellent efficiency and low
maintenance requirements.
In addition to the reliable power output, our 1000kVA generator is

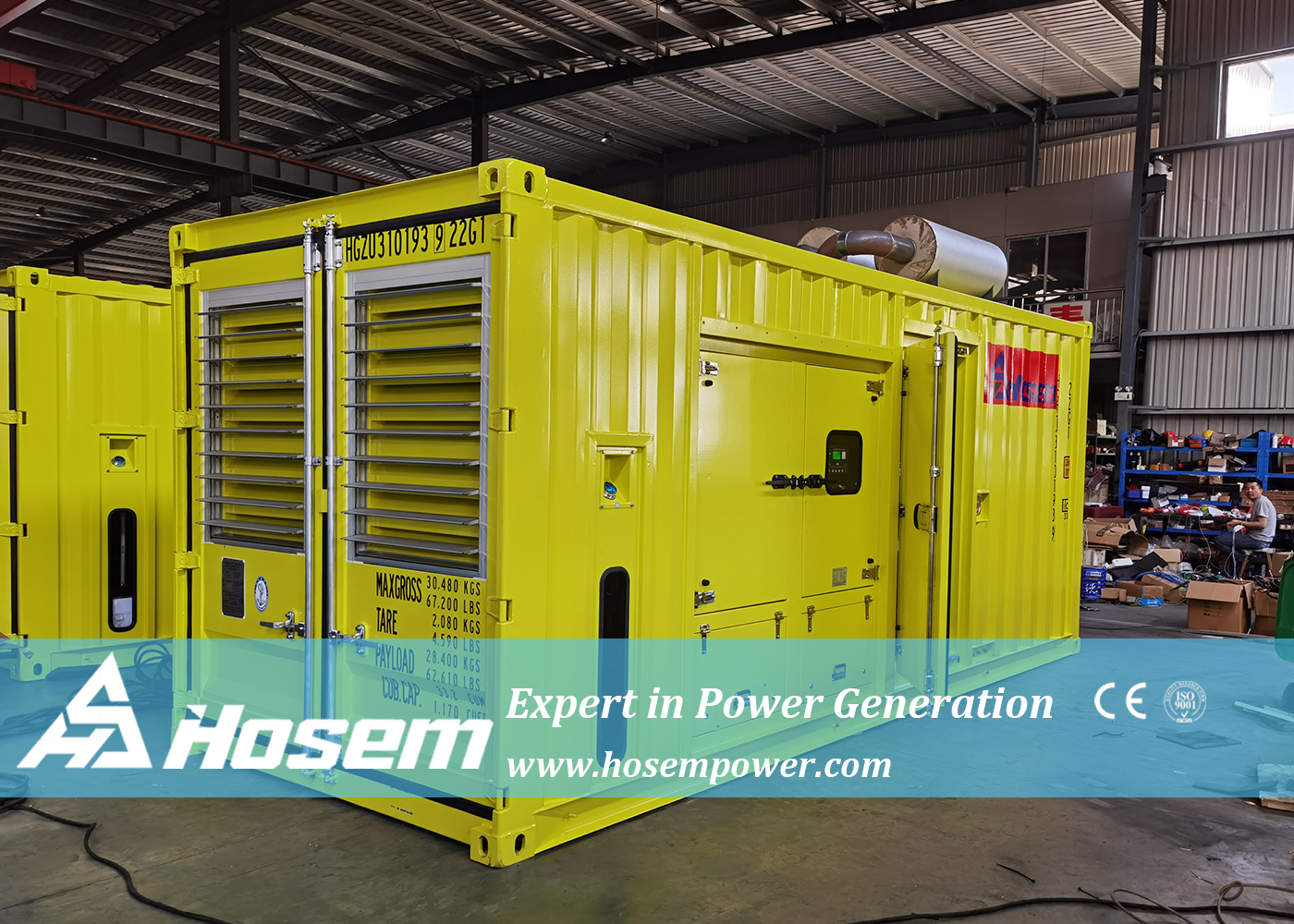

designed with the marine environment in mind. The container
soundproof canopy is built to marine standard, with anti-corrosion
features that help protect the generator from the harsh saltwater
environment. The canopy also provides excellent noise reduction,
ensuring that the generator runs quietly and does not disturb
harbor operations.
Overall, our 1000kVA generator is the perfect solution for powering
heavy-duty equipment at sea harbors. With its reliable Cummins
engine, Leroy Somer alternator, and marine-grade soundproof canopy,
you can count on this generator to deliver reliable power for years
to come.
