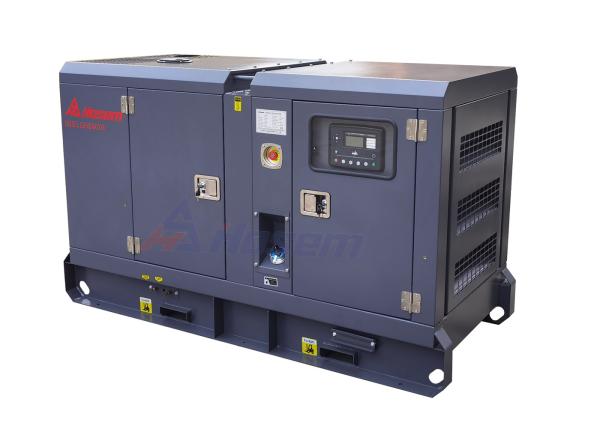

33kVA 26kW Silent Deutz Engine Water Cooled Diesel Generator Set
for sale
| Generator Set Specification |
| Model | A-DE36HS |
| Max. Power | kVA | 36 |
| kW | 28.8 |
| Rate Power | kVA | 33 |
| kW | 26.4 |
| Frequency | Hz | 60 |
| Rate Voltage | V | 220/127 |
| Rate Current | A | 86.6 |
| Dimension For Open-type Genset | mm | 1750 X 700 X 1250 |
| Weight For Open-type Genset | kg | 620 |
| Dimension For Soundproof Genset | mm | 2000 X 950 X 1250 |
| Weight For Soundproof Generator | kg | 870 |
| Engine Specification |
| Engine Manufacturer | Deutz (Dalian) Engine Co., Ltd. |
| Engine Brand | Deutz |
| Engine Model | BFM3 G2 |
| No. of Cylinder | 4 Cylinder in line |
| Aspiration | | Naturally Aspirated |
| Governor | Electric |
| Engine Max. Output Power | kW | 38 |
| Displacement | L | 3.2 |
| Starting Voltage | V | 12 |
| Bore | mm | 98 |
| Stroke | mm | 105 |
| Lubrication Oil Capacity | L | 7.5 |
| Alternator Specification |
| Alternator Manufacturer | Cummins Generator Technologies |
| Alternator Model | PI 144F |
| Alternator Brand | Stamford |
| Rate Output | kVA | 33 |
| Frequency | Hz | 60Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Voltage Regulation | AVR Model SX460 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
| Control Panel Specification |
| Controller Brand | Smartgen |
| Controller Model | HGM 6120N |
| Breaker Brand | Delixi |
| Breaker Capacity | 80A |
| Battery Charger | Supply |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| The control panel supply the full protection with Alarm and
Shutdown of the diesel generator include High Temp, Low Oil
Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under /
Over Voltage etc. |
|
|
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand
controller. |
Product Description
Δ Main Features
1. Engine and alternator be mounted on the same steel base frame
with anti-vibration pads between them.
2. Built-in damper for anti-vibration.
3. Easy to install and maintain, even for new users.
4. One of the world's most famous brands of diesel engines.
5. The best choice for Continuous power or Prime power, Backup
power, or Standby power.
6. Premium quality with 1 years warranty and low noise.
7. Generator current under 1000A, the Circuit Breaker will be
Delixi (ABB or Schneider MCCB for options).
8. Generator current exceeds 1000A, the Circuit Breaker will be
with Delixi ACB ( ABB or Schneider ACB for options).
9. Wide applications. Portable power for Hotel, Medical clinics,
Healthcare & Hospitals, Airports, Commercial & Public Buildings,
Data centers, Residential & Utilities, Hotels, Aquatic Centers,
Greenhouses, Industrial & Manufacturing, Agriculture, Landfills,
Sewage & Water Treatment, Power Stations, Government, and also some
remote locations, construction sites, events.
Δ FAQ
Q1: Warranty terms of your machine?
A: One-year warranty for the machine.
Q2: Is it all right to make the customer's own brand name?
A: We can be your OEM manufacturer with your authorization of the
brand.
Q3: Can you accept OEM orders?
A: Yes, we have a professional design team and sincerely welcome
OEM orders.
Q4: Which trade term can you accept?
A: Available trade terms: FOB, CIF, CFR, EXW, etc.
