90kVA 100kVA Silent Three Phase Cummins Diesel Generator Set Deepsea Controller

    Buy cheap 90kVA 100kVA Silent Three Phase Cummins Diesel Generator Set Deepsea Controller from wholesalers

    Buy cheap 90kVA 100kVA Silent Three Phase Cummins Diesel Generator Set Deepsea Controller from wholesalers
    • Buy cheap 90kVA 100kVA Silent Three Phase Cummins Diesel Generator Set Deepsea Controller from wholesalers
    • Buy cheap 90kVA 100kVA Silent Three Phase Cummins Diesel Generator Set Deepsea Controller from wholesalers

    90kVA 100kVA Silent Three Phase Cummins Diesel Generator Set Deepsea Controller

    Ask Lasest Price
    Brand Name : Hosem Power
    Model Number : A-C100
    Certification : CE/ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500 unit per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    90kVA 100kVA Silent Three Phase Cummins Diesel Generator Set Deepsea Controller

    90kVA 100kVA Silent Three Phase Cummins Diesel Generator Set for sale


    Generator Set Specification
    ModelA-C100
    Max. PowerkVA100
    kW80
    Rate PowerkVA90
    kW72
    FrequencyHz50
    Rate VoltageV400/230
    Rate CurrentA129.9
    Fuel Tank CapacityL180
    Dimension For Open-type Gensetmm2120 X 910 X 1310
    Weight For Open-type Gensetkg1200
    Dimension For Soundproof Gensetmm2900 X 1080 X 1500
    Weight For Soundproof Generatorkg1700
    Noise Level for Soundproof Generator at 7MdBA75
    BatteryTwo of Free Maintenance Battery

    Engine Specification
    Engine ManufacturerDongfeng Cummins Engine Co., Ltd.
    Engine BrandCummins
    Engine Model6BT5.9-G1
    No. of Cylinder6 Cylinder in line
    AspirationTurbocharged
    GovernorMechanical
    Engine Max. Output PowerkW94.6
    DisplacementL5.9
    Compression Ratio17.3 : 1
    Starting VoltageV24
    Boremm102
    Strokemm120
    Lubrication Oil CapacityL16.4
    Intake Air FlowM3/Min5.8
    Fuel Consumption at 100% LoadL/H21.7

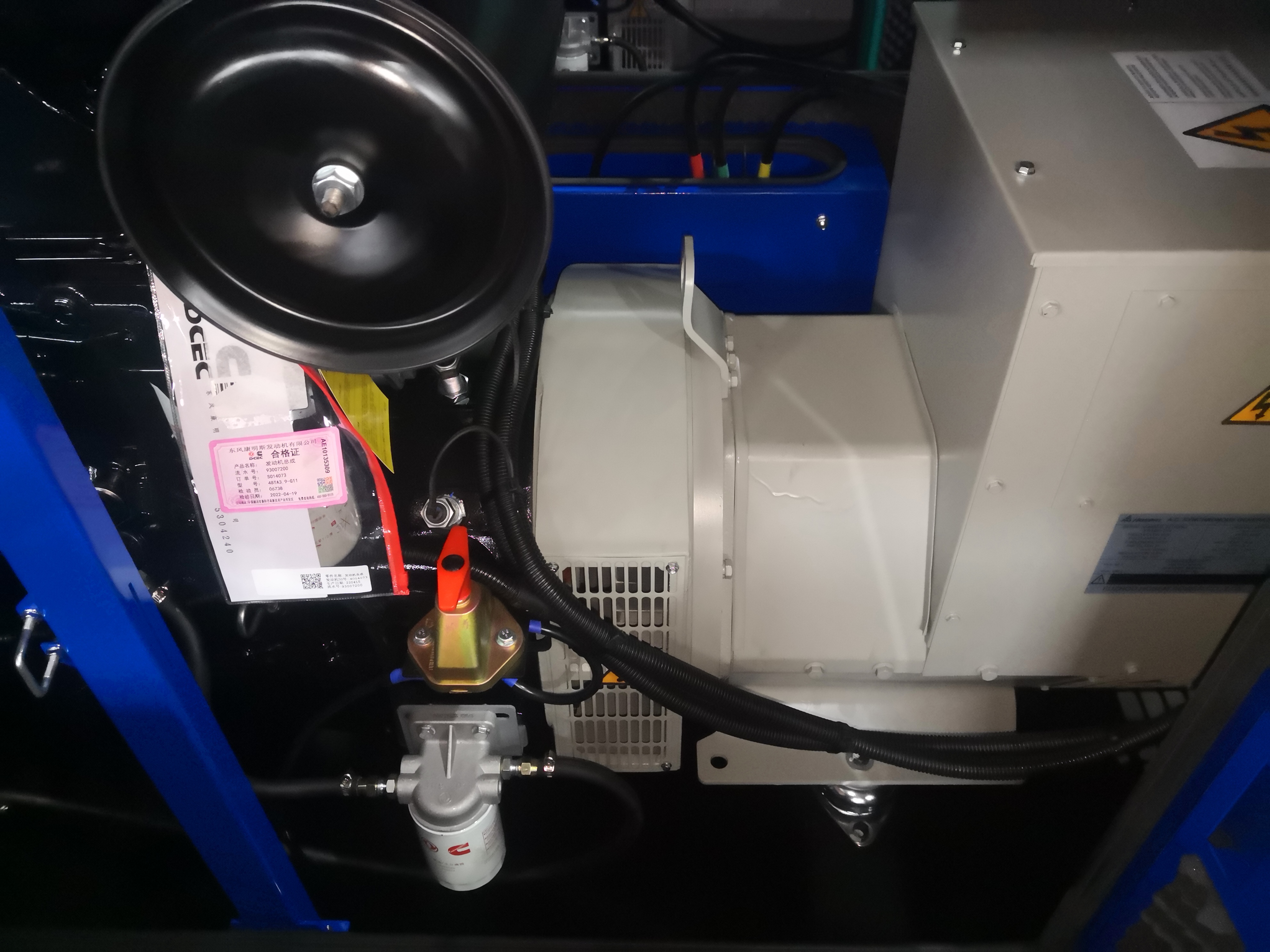

    Alternator Specification
    Alternator ManufacturerFuzhou Hosem Power Co., Ltd.
    Alternator ModelASF224GL
    Alternator BrandHosem
    Rate OutputkVA105
    FrequencyHz50Hz
    AltitudeM≤1000
    InsulationClass H
    Phase3 Phase
    Working Temperature without power decrease≤40℃
    Working Altitude without power decrease≤1000m
    Automatic Voltage RegulationSX440
    Protection GradeIP23
    Alternator for optionalLeroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

    Control Panel Specification
    Controller BrandDeepsea
    Controller ModelDSE7320
    Breaker BrandDelixi
    Breaker Capacity (A)160
    Battery ChargerSmartgen Model BAC06A
    Emergency Stop ButtonSupply
    Automatic Mains Fail (AMF)Supply
    Fuel LevelSupply
    Automatic Transfer SwitchATS as optional part
    The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
    Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

    Product Description

    Δ Main Features

    1. The turbocharger with waste gated design: Optimizes operation across the torque curve resulting in excellent low-end torque.
    2. Advanced design and manufacturing: Make the engine delivers superior performance and lower cost than competitive engines.
    3. Excellent cold start performance: Optional assistant cold starter with improved starter and intake air heater.
    4. Excellent performance and advantage: Adopt advanced design to achieve higher horsepower and lower weight.
    5. Big enough free maintenance battery, world-famous brand.
    6. Fewer parts, fewer failures, less maintenance;
    7. Integrated design, prevents oil leakage, and greatly reduces the failure rate.
    Intake preheating, better-starting performance, faster acceleration.
    8. Low oil pressure shuts down the system.
    9. Low fuel cut-out protection.
    10. Low water cut-out engine protection.
    11. Enclosed structure ensures quieter operation.
    12. Alternator excitation mode brushless self-excitation.



    Δ FAQ


    Q1: The valid period of the offer?

    A: Usually 30 days.


    Q2: Where is your Loading Port?

    A:FUZHOU MAWEI PORT,CHINA.


    Q3: What are your payment terms?

    A:30% T/T With Order, 70% balance paid by T/T before shipment.


    Q4: What is your company's available production capacity?

    A:100 Sets per month.
