    Electric Genset 50kVA 40kW Fawde Diesel Generator Set Water Cooled

    Ask Lasest Price
    Brand Name : Hosem Power
    Model Number : A-XC55S
    Certification : CE/ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500 unit per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

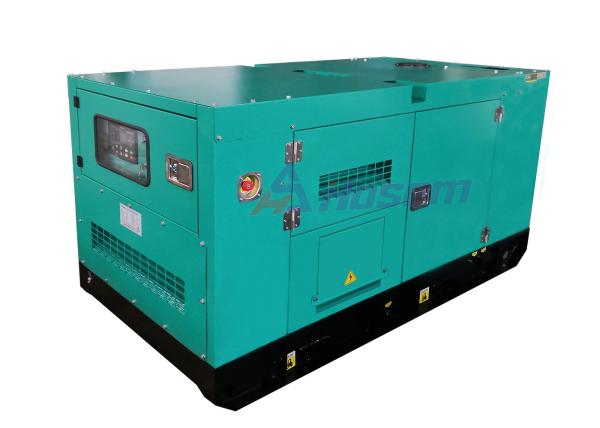

    Electric Genset 50kVA 40kW Fawde Diesel Generator Set Water Cooled

    Best Electric Genset 50kVA 40kW Power by FAW Engine Diesel Generator Manufacturers


    Generator Set Specification
    ModelA-XC55
    Max. PowerkVA55.0
    kW44.0
    Rate PowerkVA50.0
    kW40.0
    FrequencyHz50
    Rate VoltageV400/230
    Rate CurrentA72.2
    Dimension For Open-type Gensetmm1750 X 800 X 1150
    Weight For Open-type Gensetkg850
    Dimension For Soundproof Gensetmm2100 X900 X 1200
    Weight For Soundproof Generatorkg1100
    Noise Level at 7 MetersdBA72
    Fuel Tank CapacityLitres125
    BatteryOne of 80A Free Maintenace Battery

    Engine Specification
    Engine ManufacturerFaw Jiefang Automotive Co., Ltd. Wuxi Diesel Engine Works
    Engine BrandFawde
    Engine Model4DX23-65D
    No. of Cylinder4 Cylinder in line
    AspirationTurbocharged & Aftercooled
    GovernorElectric
    Engine Max. Output PowerkW53
    DisplacementL3.860
    Starting VoltageV24
    Boremm102
    Strokemm118
    Lubrication Oil CapacityL13
    Compression Ratio0
    Intake Air FlowM3/Min3.9
    Fuel Consumption at 100% LoadL/H12.5

    Alternator Specification
    Alternator ManufacturerFuzhou Hosem Power Co., Ltd.
    Alternator ModelASF224D
    Alternator BrandHosem
    Rate OutputkVA50
    FrequencyHz50Hz
    CurrentA72.2
    InsulationClass H
    Voltage RegulationSX460
    Protection GradeIP23
    Working Temperature without Output Decrease≤1000 m
    Phase3 Phase
    Temperature Rise125 Degree Celsius
    Alternator for optionalLeroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

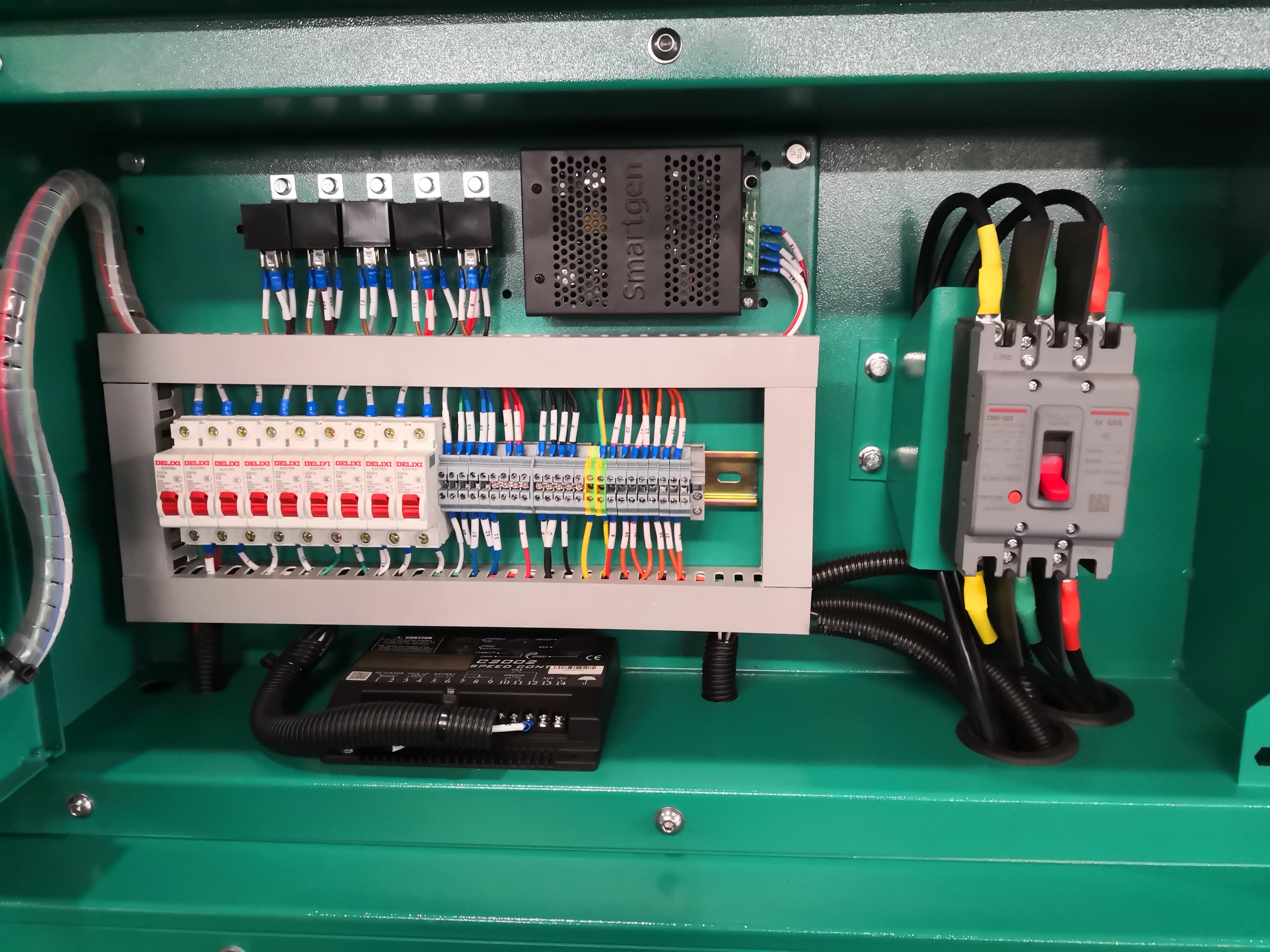

    Control Panel Specification
    Controller BrandSmartgen
    Controller Model

    HGM6120N

    Breaker BrandDelixi
    Breaker CapacityA80
    Battery ChargerSmartgen Model BAC06A
    Emergency Stop ButtonSupply
    Automatic Mains Fail (AMF)Supply
    Fuel LevelSupply
    Automatic Transfer SwitchATS as optional part
    Mains MonitorSupply with AMF Function
    The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
    Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

    Product Description

    Δ Main Features

    1. Long-Life Expectancy - these critical parts are manufactured by leading companies, and another part comes from reliable manufacturers. These sets guarantee long functional life, outstanding performance, and high efficiency.
    2. The generator is with 8-10 hours base frame tank for customizing and a steel base frame.
    3. The soundproof canopy thickness is up to 2mm. The steel is cut by Laser cutting machines and bent by automatic wrench machines. after that, they are welded and polished.
    4. Our spraying powdered material is of high quality in the industry and it is coated by an automatic powder painting machine, which can assure there is no color loss in 3 years.
    5. Easy availability of spare parts -- the well-known brand diesel engines, with better durability.
    6. General catalog in English in PDF format that illustrates the quality and added values of manufacturing.
    7. An additional kit of filters and basic spare parts is provided on some models.
    9. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
    10. All new designs for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, and Container type.



    Δ FAQ


    Q1: Which trade term can you accept?

    A: Available trade terms: FOB, CIF, CFR, EXW, etc.


    Q2: What is your MOQ for this item?

    A:1 Set.


    Q3: The valid period of the offer?

    A: Usually 30 days.


    Q4: Where is your Loading Port?

    A:FUZHOU MAWEI PORT,CHINA.
