    30kVA 24kW Electric Start Diesel Generator Silent Type Powder Spraying Canopy

    Ask Lasest Price
    Brand Name : Hosem Power
    Model Number : A-P33S
    Certification : CE/ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500 unit per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    30kVA 24kW Electric Start Diesel Generator Silent Type Powder Spraying Canopy

    30kVA 24kW Electric Start Silent Type Perkins Diesel Generator with Powder Spraying Canopy


    Product Description


    Generator Set Specification
    ModelA-P33S
    Max. PowerkVA33
    kW26.4
    Rate PowerkVA30
    kW24
    FrequencyHz50
    Rate VoltageV400/230
    Rate CurrentA43.3
    Fuel Tank CapacityL60
    Dimension For Open-type Gensetmm1460 X 750 X 1200
    Weight For Open-type Gensetkg762
    Dimension For Soundproof Gensetmm2050 X 900 X 1150
    Weight For Soundproof Generatorkg1050
    Noise Level for Soundproof Generator at 7MdBA72
    Battery for StartingTwo of Free Maintenance Battery

    Engine Specification
    Engine ManufacturerPerkins Engines Company Limited
    Engine BrandPerkins
    Engine Model1103A-33G
    No. of Cylinder3 Cylinder in line
    AspirationNaturally Aspirated
    GovernorElectric
    Engine Max. Output PowerkW31
    DisplacementL3.3
    Compression Ratio19.5 : 1
    Starting VoltageV12
    Boremm105
    Strokemm127
    Lubrication Oil CapacityL7.8
    Intake Air FlowM3/Min2.16
    Fuel Consumption at 100% LoadL/H7.1

    Alternator Specification
    Alternator ManufacturerCummins Generator Technologies
    Alternator ModelPI 144G
    Alternator BrandStamford
    Rate OutputkVA30
    FrequencyHz50Hz
    AltitudeM≤1000
    InsulationClass H
    Phase3 Phase
    Working Temperature without power decrease≤40℃
    Working Altitude without power decrease≤1000m
    Automatic Voltage RegulationSX460
    Protection GradeIP23
    Alternator for optionalLeroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

    Control Panel Specification
    Controller BrandDeepsea
    Controller ModelDSE7320
    Breaker BrandDelixi
    Breaker Capacity (A)63
    Battery ChargerSmartgen Model BAC06A
    Emergency Stop ButtonSupply
    Automatic Mains Fail (AMF)Supply
    Fuel LevelSupply
    Automatic Transfer SwitchATS as optional part
    The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
    Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

    Product Features


    1. The start system of the Perkins diesel generator has a 24V maintenance-free battery by Varta.


    2. Hosem Power provides the standard control panel for the 33kVA diesel genset, which has digital shows every function can easily operate by your hand and with various languages to choose from. Support with English, Chinese, Russian, Spanish, and Turkish.


    3. The diesel generator set was using water cooled by the coolant, to efficiently avoid the higher temperature during the genset working. Protect the 30kVA diesel generator for a longer lifespan.


    4. The 24kW diesel generator soundproof canopy uses high-density flame retardant sound insulation cotton with a thickness of up to approximately 3cm. The noise level is about 72 dBA at 7 meters away.


    5. Hosem Power diesel genset can offer the Automatic Transfer Switch(ATS) for choice. Make sure the diesel genset can work immediately when the city power is powered off. Ensure can timely power your project all the time.


    6. Three-phase Perkins diesel generator has durable structures in complete design, with double-door open constructions making it easy to install and maintain.


    7. Adopting advanced world-famous components, and can easily get replacement spare parts because of its widely used.


    8. The diesel generator set has with manual diesel fuel level indicated on the base frame fuel tank and an electric diesel fuel level indicated on the controller both can show you the present fuel level.

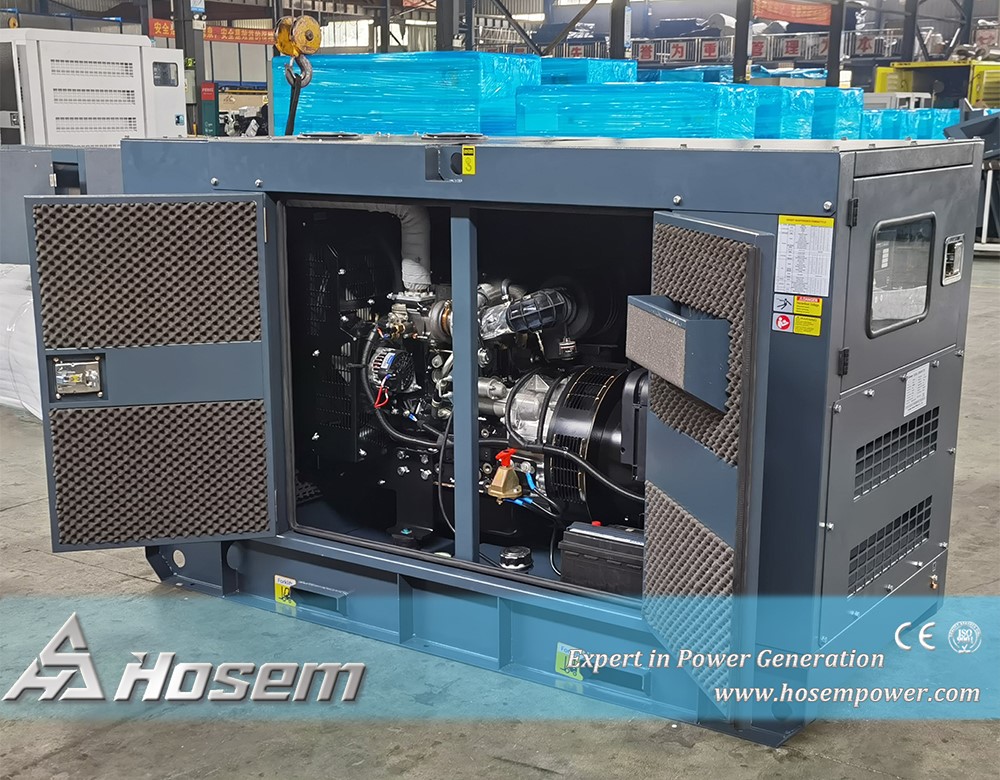

    30kVA Perkins diesel


    Perkins 24kW generator


    Hosem Power diesel generators will be much easier to maintain and repair with more durable performance and longer service life, so the cost performance is higher.
