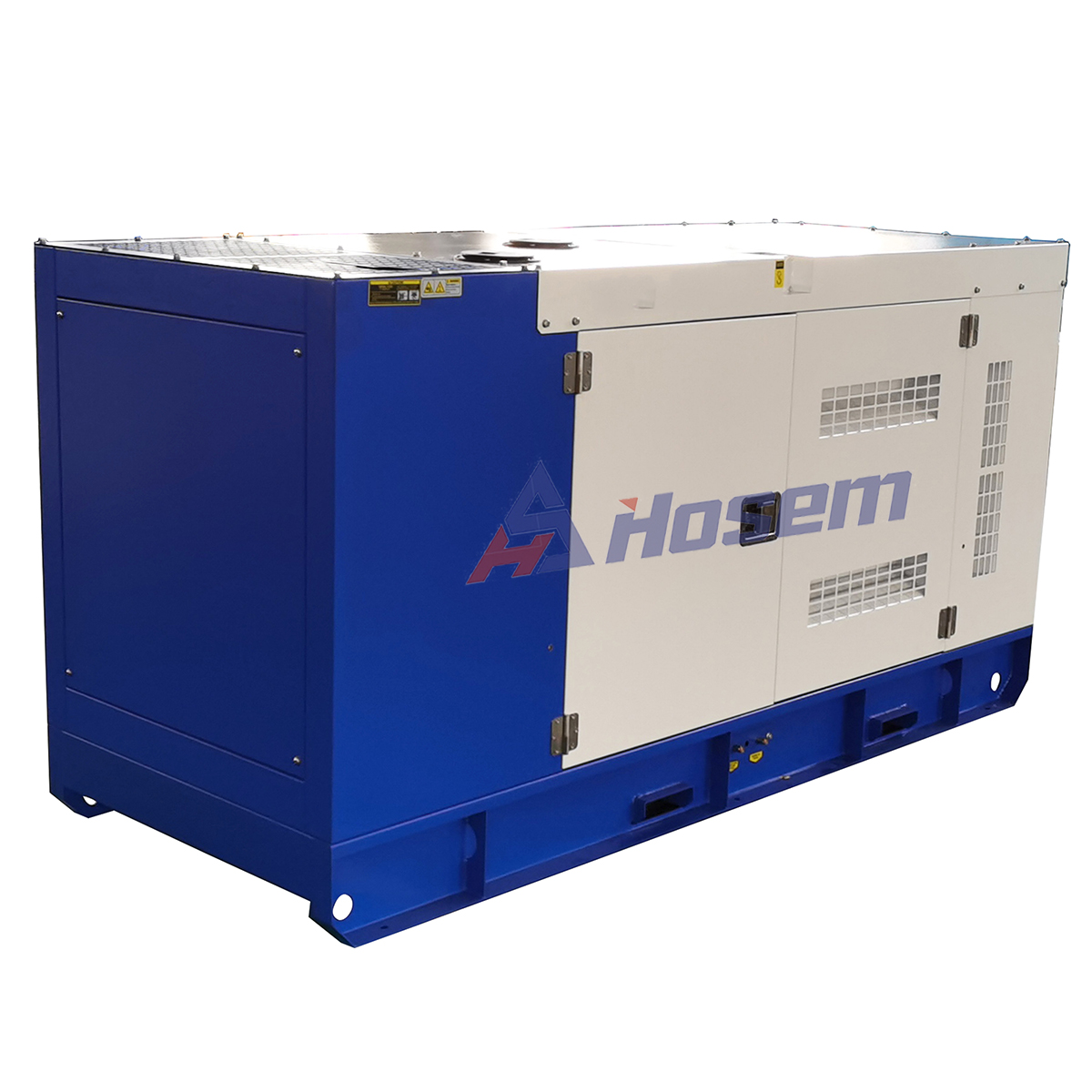

SDEC Diesel Generator 110kVA Standby Power Soundproof Engine By 4
Cylinder In Line
| Generator Set Specification |
| Model | A-SH110 |
| Max. Power | kVA | 110.0 |
| kW | 88.0 |
| Rate Power | kVA | 100.0 |
| kW | 80.0 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 144.3 |
| Dimension For Open-type Genset | mm | 2150 X 900 X 1420 |
| Weight For Open-type Genset | kg | 1200 |
| Dimension For Soundproof Genset | mm | 2900 X 1080 X 1500 |
| Weight For Soundproof Generator | kg | 1900 |
| Noise Level at 7 Meters | dBA | 75 |
| Fuel Tank Capacity | Litres | 200 |
| Battery | Two of Free Maintenance Battery |
Technical data--Alternator
| Alternator Specification |
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. |
| Alternator Model | ASF274C |
| Alternator Brand | Hosem |
| Rate Output | kVA | 125 |
| Frequency | Hz | 50Hz |
| Current | A | 180.4 |
| Insulation | Class H |
| Voltage Regulation | SX440 |
| Protection Grade | IP23 |
| Working Temperature without Output Decrease | ≤1000m |
| Phase | 3 Phase |
| Temperature Rise | 125 Degree Celsius |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
Technical data--Engine
| Engine Specification |
| Engine Manufacturer | Shanghai Diesel Engine Co., Ltd. |
| Engine Brand | SDEC |
| Engine Model | 4HTAA4.3-G21 |
| No. of Cylinder | 4 Cylinder in line |
| Aspiration | Turbocharged and Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 105 |
| Displacement | L | 4.300 |
| Starting Voltage | V | 24 |
| Bore | mm | 105 |
| Stroke | mm | 124 |
| Lubrication Oil Capacity | L | 11-13 |
| Compression Ratio | 16 : 1 |
| Intake Air Flow | M3/Min | 6.8 |
| Fuel Consumption at 100% Load | L/H | 23.0 |
Technical data--Controller
| Control Panel Specification |
| Controller Brand | Smartgen |
| Controller Model | HGM6120N |
| Breaker Brand | Delixi |
| Breaker Capacity | A | 125 |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| Mains Monitor | Supply with AMF Function |
| The control panel supply the full protection with alarm and
shutdown of the diesel generator include Start-up fault (generator
set shutdown), High coolant temperature (alarm and generator set
shutdown), Low oil pressure (alarm and generator set shutdown), Low
fuel level (alarm), Low cooling fluid level alarm (as optional),
Overload (alarm and generator set shutdown), Battery voltage high
(alarm). |
|
|
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand
controller. |
Description
1.The SDEC Diesel Generator is a reliable and powerful standby
power solution, delivering 110kVA of power when needed. Featuring a
soundproof design, it effectively minimizes noise disturbances
during operation.
2.This generator is equipped with a 4-cylinder in-line engine,
ensuring efficient performance and consistent power output.
3.The soundproof enclosure of the generator significantly reduces
noise levels, making it suitable for a variety of applications,
including residential areas, commercial spaces, and construction
sites.
4.Whether used as a backup power source or as the primary power
supply, the SDEC Diesel Generator 110kVA Standby Power Soundproof
Engine offers reliable and efficient performance.
5.One of the key features of the SDEC diesel generator is its
advanced technology and high-performance components.
6.The SDEC diesel generator is built with durability in mind. It is
constructed using high-quality materials, ensuring long-lasting
performance and resistance to wear and tear. The generator's design
also facilitates easy maintenance and servicing, reducing downtime
and ensuring it is always ready for use.
7.With its advanced technology, durability, and ease of use, it is
an excellent choice for those in need of a dependable backup power
source.
8.It is specifically designed to deliver a maximum power output of
110kVA.
9.The generator is powered by a high-performance SDEC diesel engine
that is known for its reliability and durability.
10.the 110kVA SDEC diesel generator is built to withstand demanding
conditions. It features a sturdy and durable enclosure that
protects the engine and other components from external elements and
reduces noise emissions during operation.
FAQ:
Q1: What is the brand name of the SDEC Generator Set?
A1: The brand name of the SDEC Generator Set is Hosem.
Q2: What is the model number of the SDEC Generator Set?
A2: The model number of the SDEC Generator Set is A-SH110.
Q3: Where is the SDEC Generator Set from?
A3: The SDEC Generator Set is from China.
Q4: What is the power output of the SDEC Generator Set?
A4: The power output of the SDEC Generator Set depends on the
specific model.
Q5: Can we customize the product?
A: We have a very experienced technical team, we can customize any
product according to your requirements, such as synchronization
system, wet exhaust system, ultra-silent system.
